Sunshade with 4 modular sections in Sunbrella fabric
This canopy is made up of 4 independent fabrics that can be zipped individually depending on the desired level of protection and the angle of the sun.

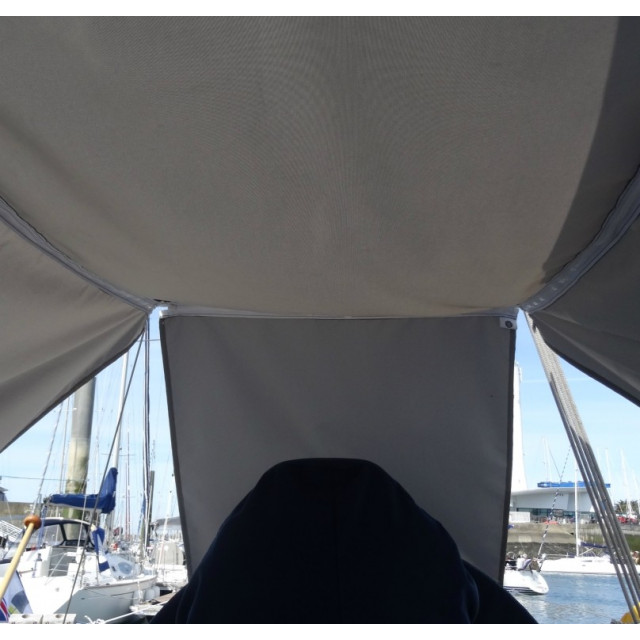

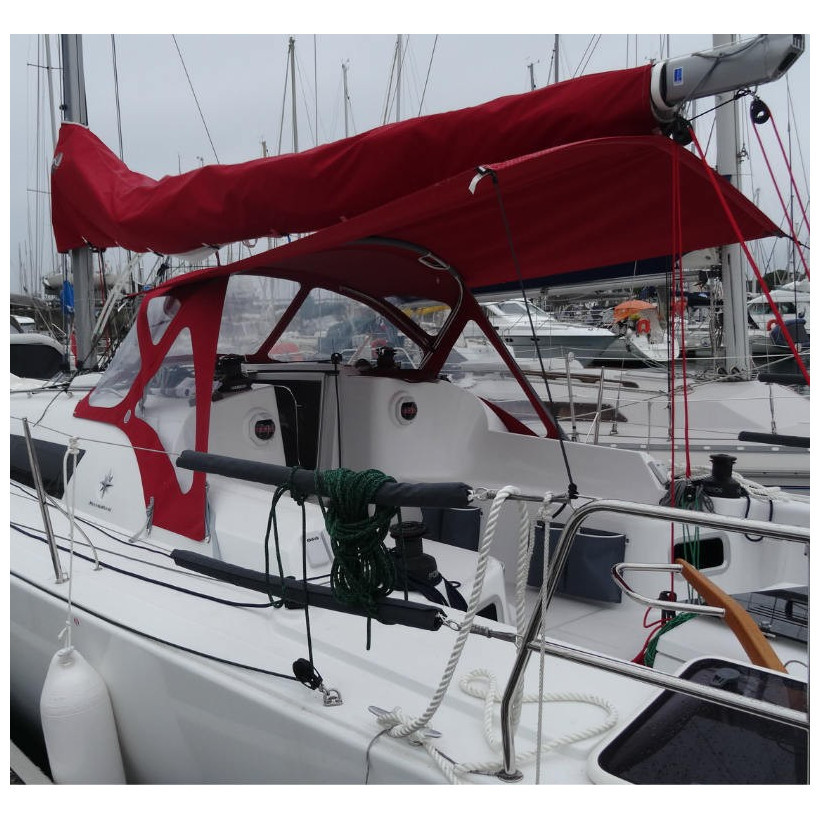

The roof fabric alone as shown in the red photo, or all 4 fabrics together as shown in the gray photo, or the roof fabric plus 1, 2, or 3 fabrics.
Do you have a question?
Call us 7/7 from 8am to 8pm
+33 (0)2 97 46 11 87
Description
In which case should the modular sunshade be used?
- as a replacement for the bimini (arched roof)
- when the boom does not cover the cockpit, it is attached to the backstays
- when the boom covers the cockpit, it can be attached under the boom and stiffened by inserting a batten into the sleeve.
Composed of 4 parts: roof, port side canvas, starboard side canvas, and rear canvas. It is structured à la carte according to the desired protection, whether from the sun at its zenith, low sun, or even rain.
Attachment at the handrail level of the cabin cover thanks to strap buckles. Without a handrail, insert a batten into the sleeve provided for this purpose.

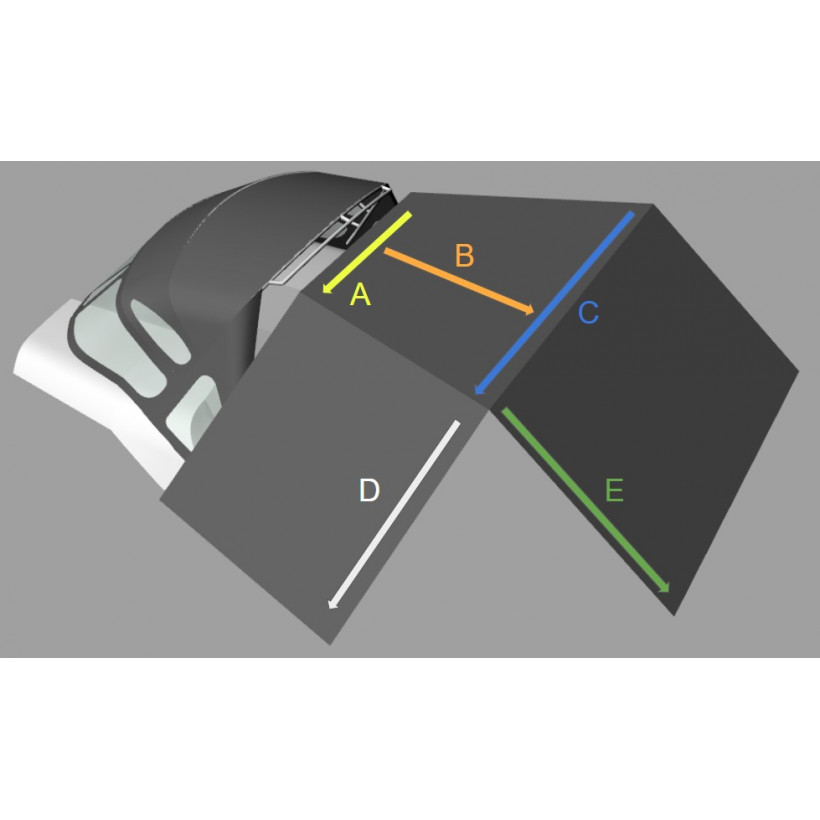

Batten sleeves positioned at A and C on the diagram
The sides equipped with strap buckles are attached to the lifelines and backstays.
Battens (12mm diameter) are not included.
Dimensions:
| Measurement A | Measurement B | Measurement C | Measurement D | Measurement E | |
| Size XS | 100cm | 100cm | 150cm | 50cm | 50cm |
| Size S | 100cm | 100cm | 180cm | 100cm | 100cm |
| Size M | 140cm | 140cm | 200cm | 100cm | 100cm |
Product Details
PSB180730B
- Installation principle

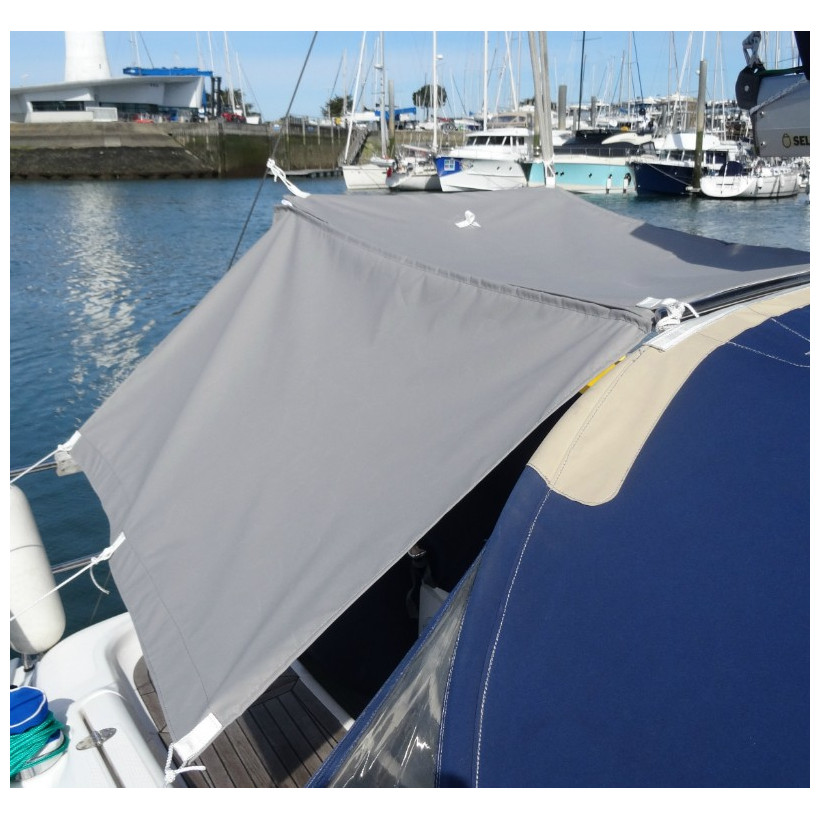

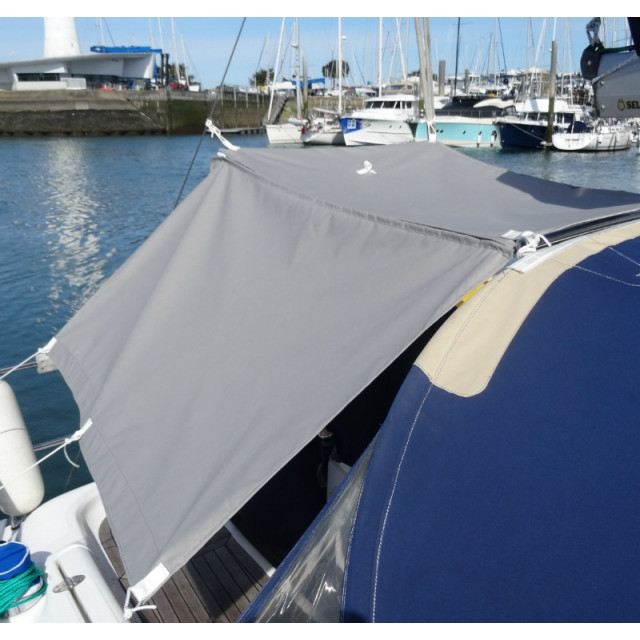

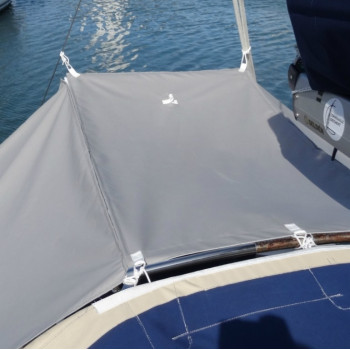

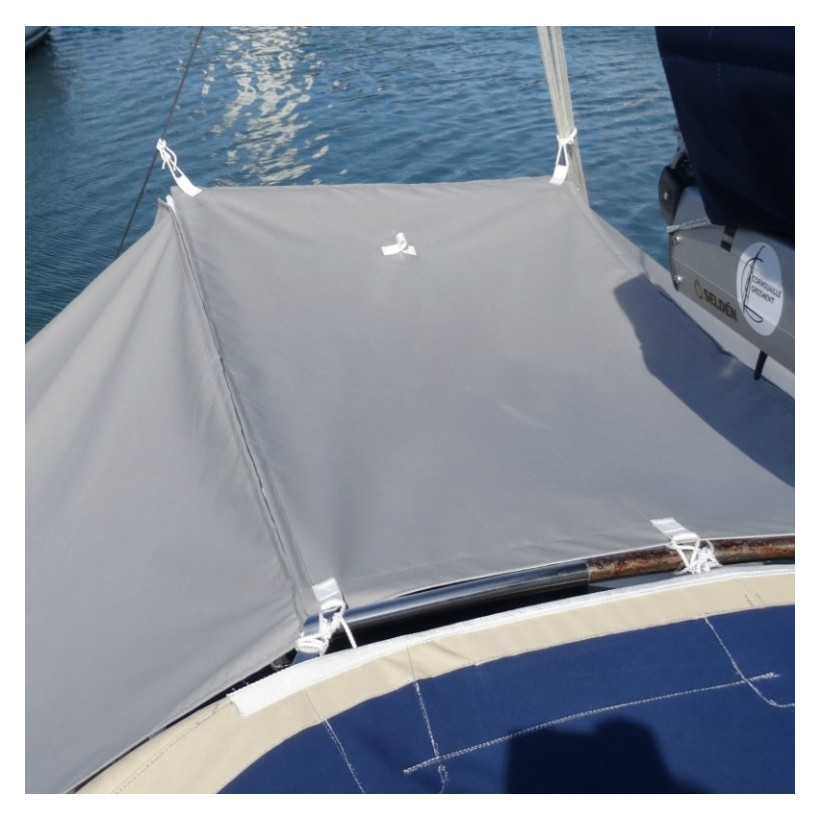

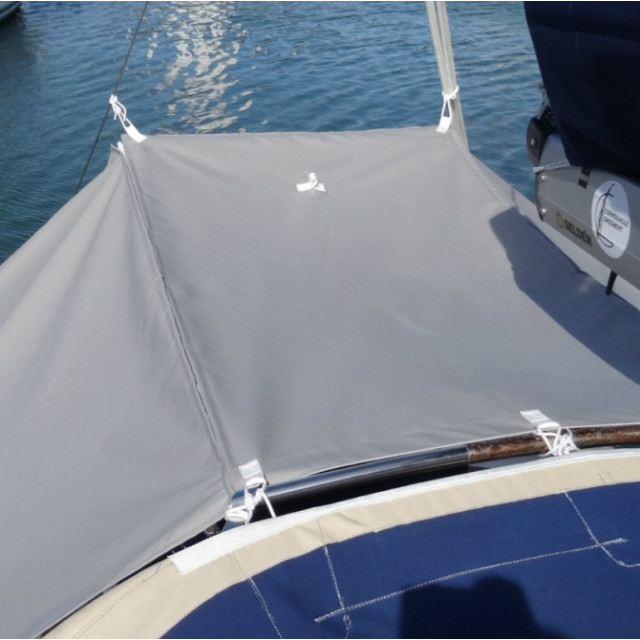

- The roof is attached at the front to the handrail or the convertible top handles; if it is not possible to attach it to the convertible top, there is a version with a batten that allows attachment under the boom with support on the lifelines.
- Installation principle continued
- Continuation: The rear is attached to the forked bracket. Loop on the roof to tighten the tarp with the mainsail halyard. Zipper on three sides to attach side and rear flaps secured to the lifelines.
