STAINLESS STEEL SLIDE FOR SEANOX PROBE

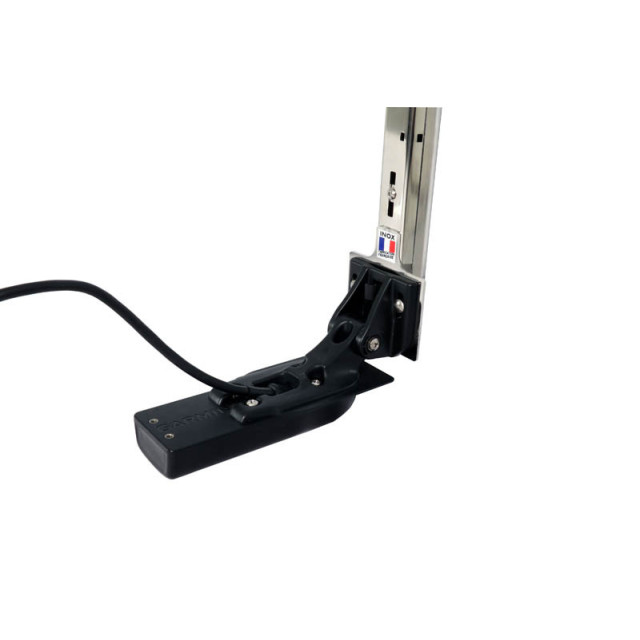

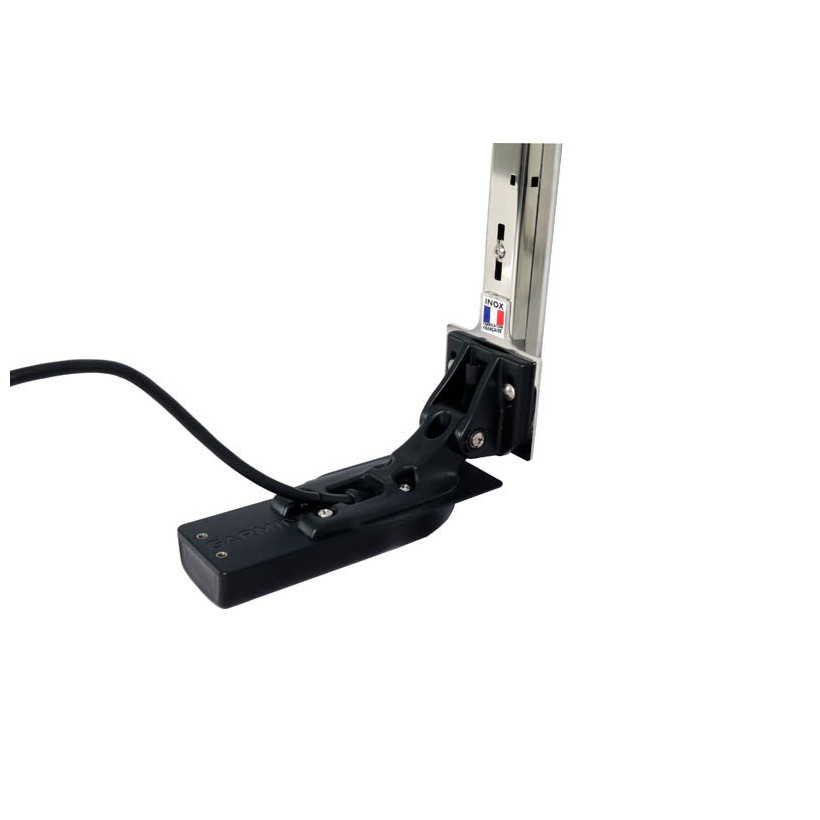

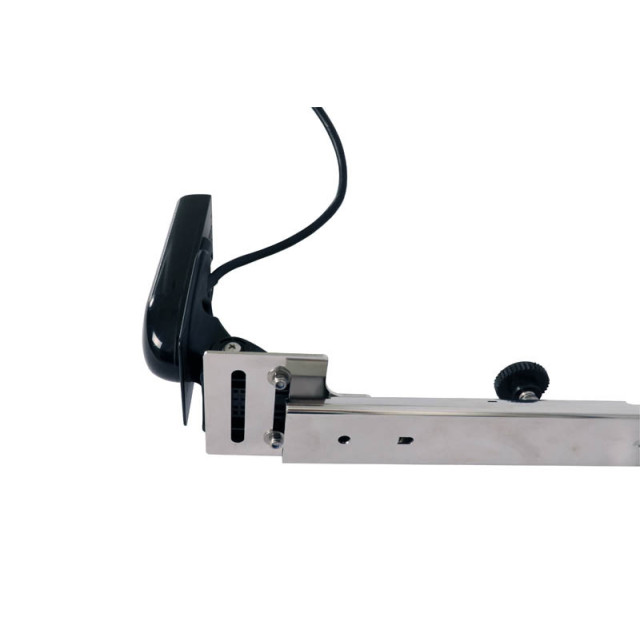

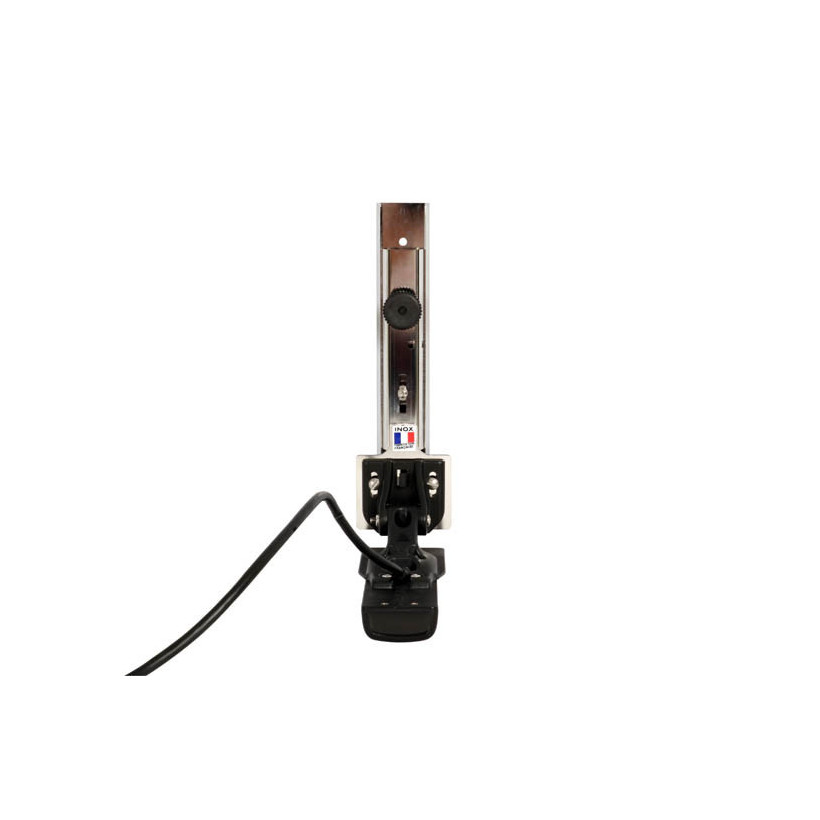

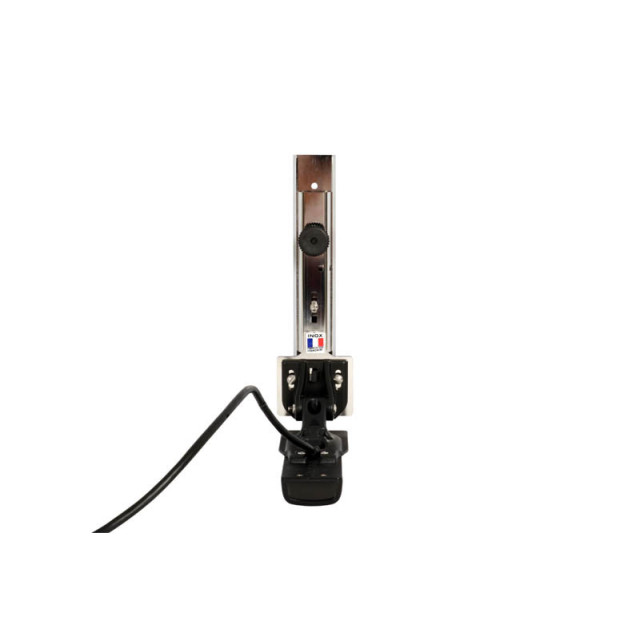

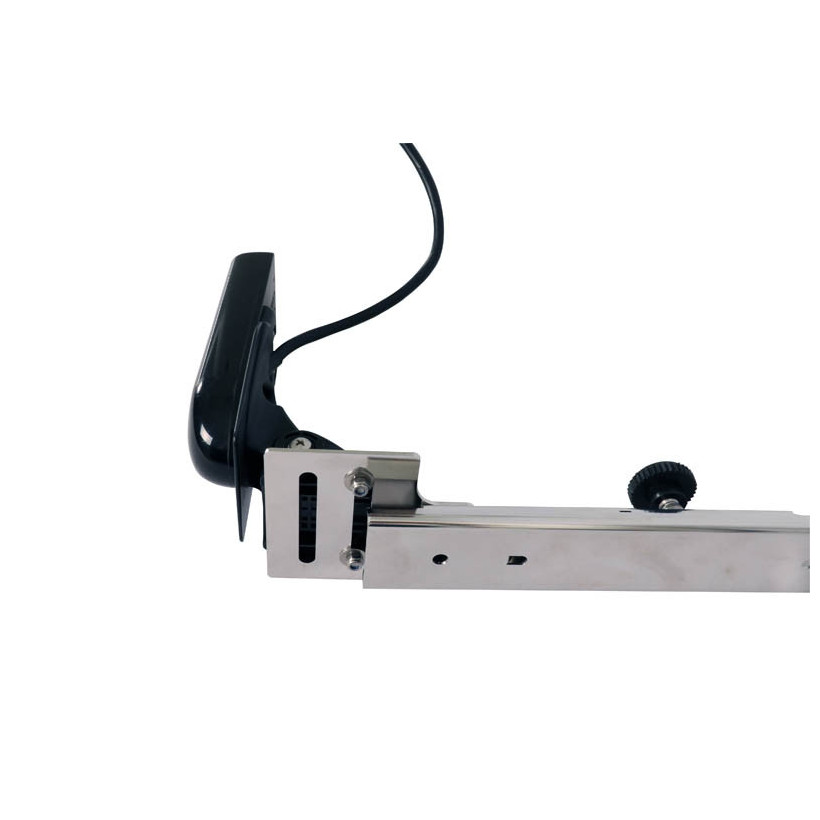

The SEANOX slides, Made in France, consist of a part to be fixed on the boat and a movable part extended by a universal mounting plate to receive the transducer bracket.
They accommodate all transducer models on the market (except AIRMAR 1kW) thanks to their oblong windows and allow fine adjustments to achieve the best detection results.
The movable part of the slide is held in the lower stop position by a stainless steel cage nut that provides an additional 30mm of adjustment. This fine adjustment allows optimizing the height of the transducer without any disassembly. Once set, it is not lost even when the transducer is removed between outings.

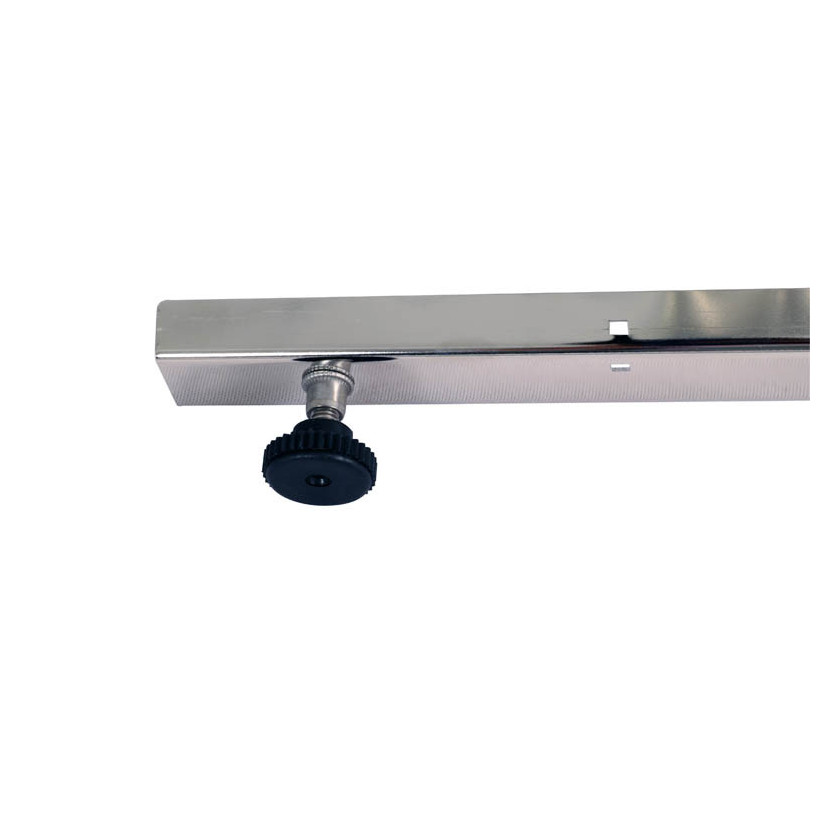

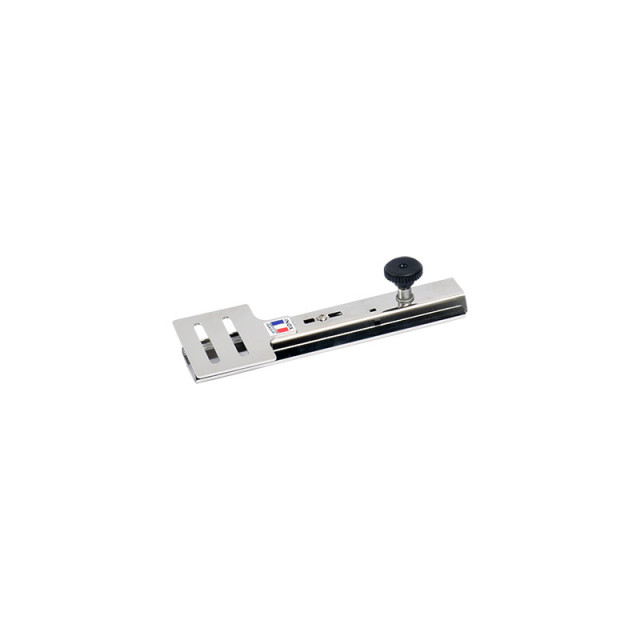

It is possible to completely remove the transducer by loosening the M8 plastic tightening knob during beaching, trailer launching, or lifting for dry dock storage; this operation also helps avoid cleaning algae or shellfish that usually accumulate on the transducer, thus avoiding the need for antifouling.

- Material: 316L stainless steel, 2mm thick
- Mounted to the boat with screws not supplied.

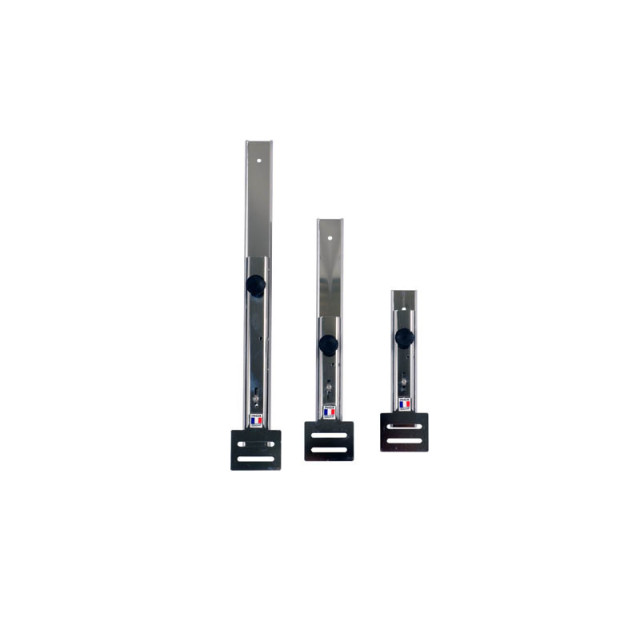

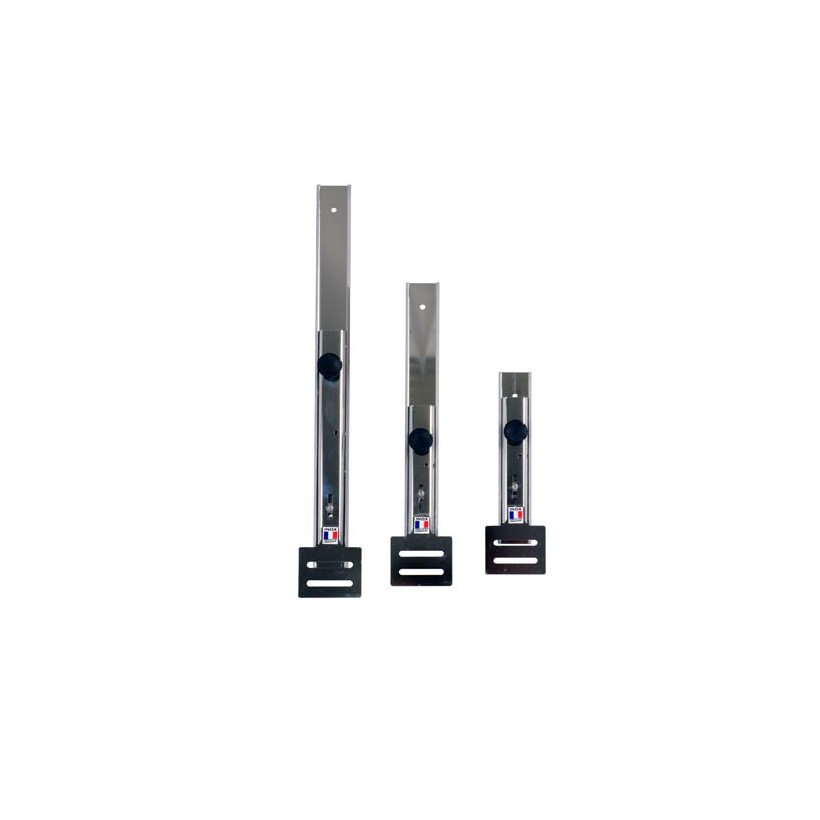

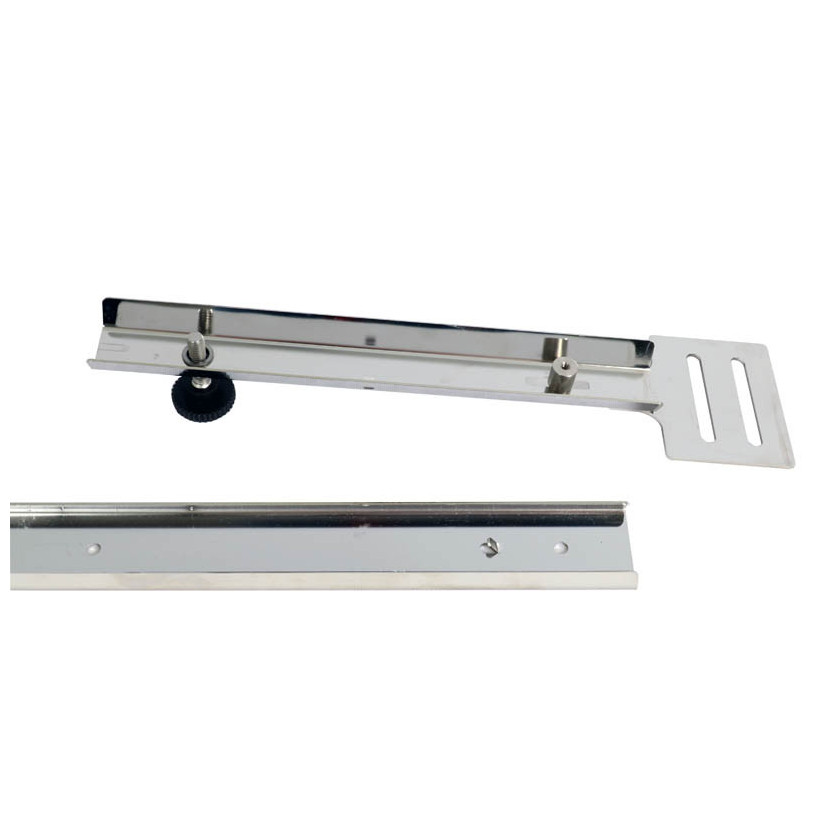

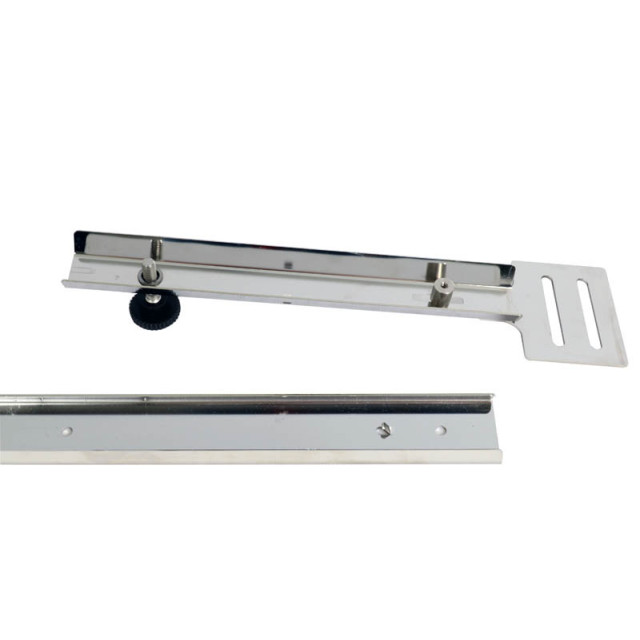

- Telescopic slide, movable part with adjustable stop: lengths PM 220mm, MM 220mm, and GM 320mm.
- Fixed slide with fixed stop: lengths PM 215, MM 330, and GM 465mm for a common width of 75 mm. Drill holes for transom mounting diameter 6.2mm.

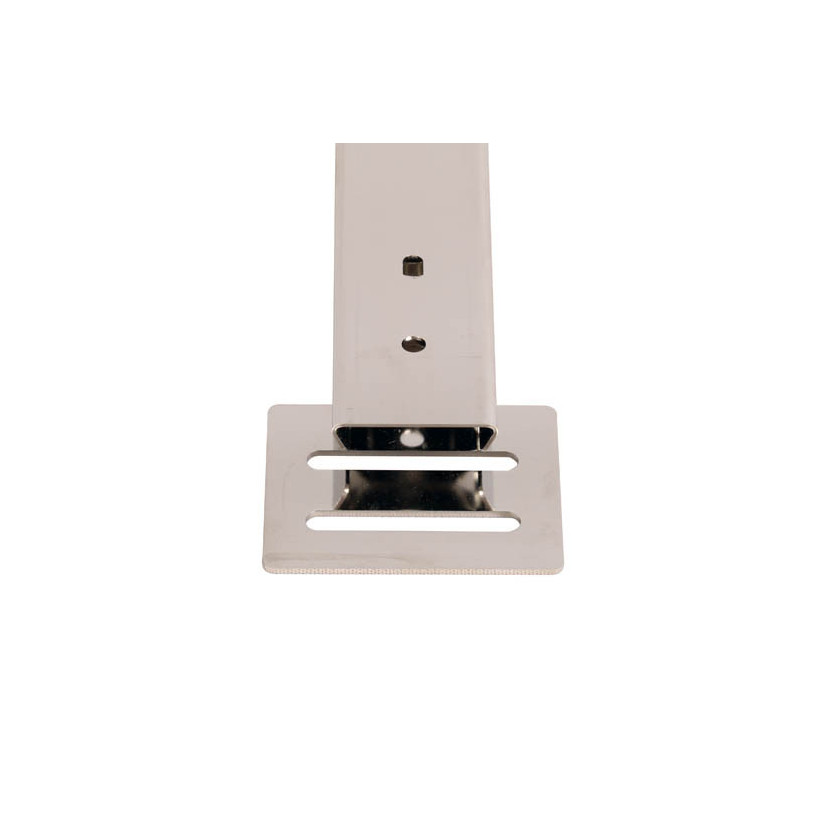

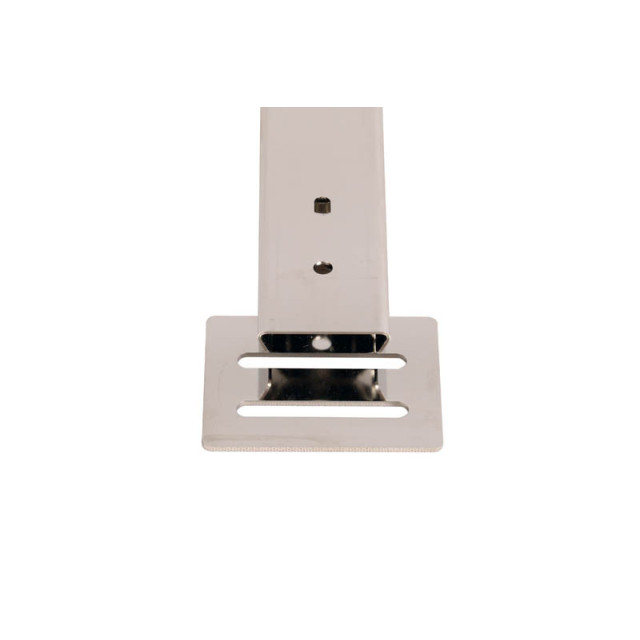

- Stainless steel transducer plate 75 mm/60mm, with 2 horizontal oblong windows of 55mm/7mm
- Recommended navigation speed during use: 25 knots
