Plastic strap passer
Nylon strap pass-through for 25mm, 30mm, 40mm, 50mm straps - Price for 5 units supplied with 10 stainless steel screws.
Do you have a question?
Call us 7/7 from 8am to 8pm
+33 (0)2 97 46 11 87
Description

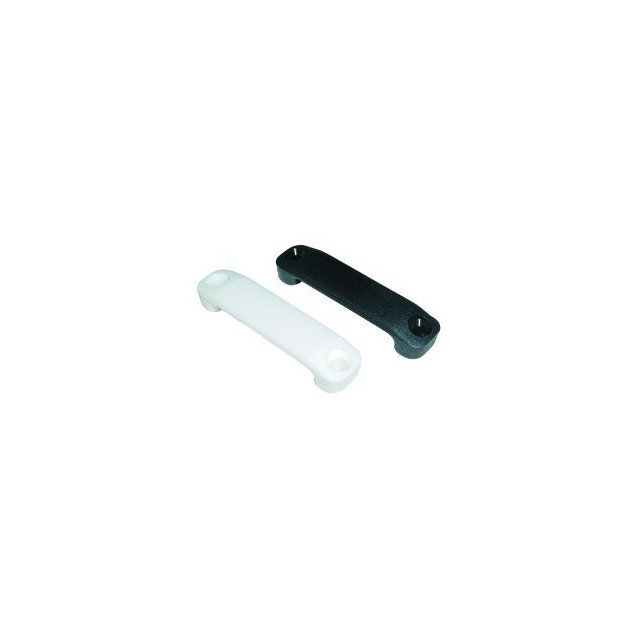

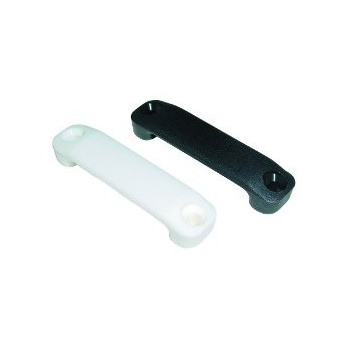

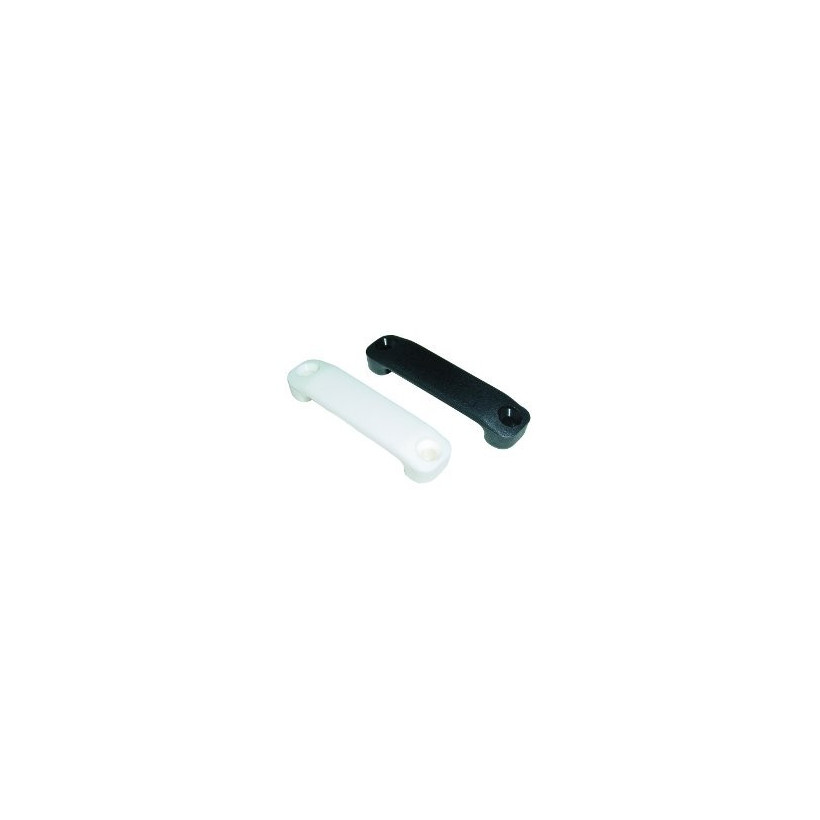

Extra-flat bracket for securing straps on boats. Model with screw fastening in white nylon plastic.

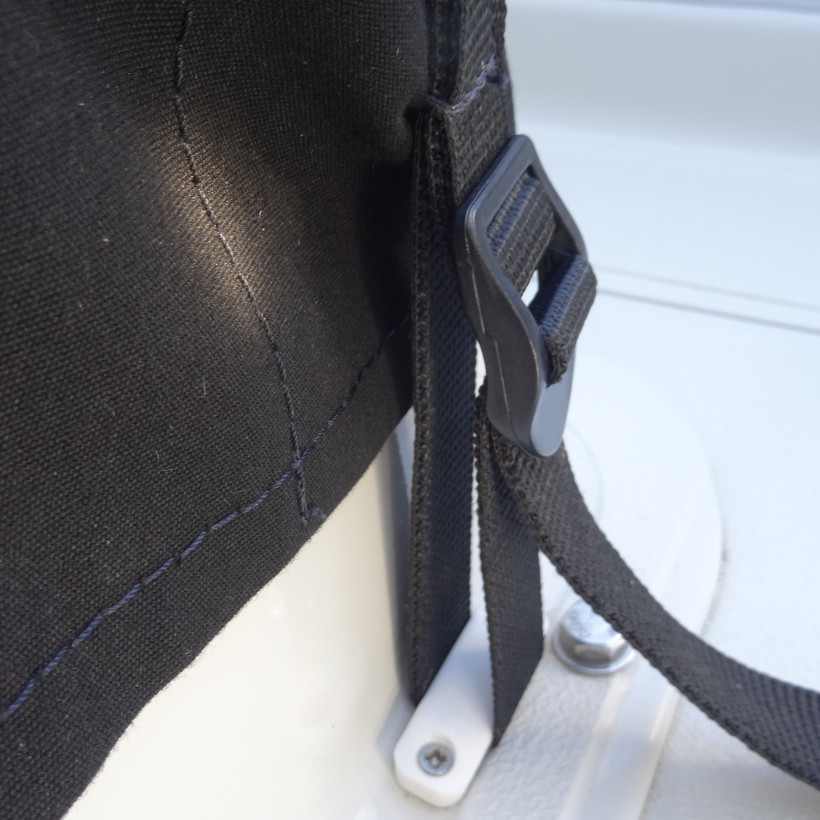

Convenient for securing straps or creating a strap passage type return for straps subjected to little stress (canopy, gas bottle fastening, or light object...); these brackets are flat and take up very little space once screwed in. Made of white or black nylon plastic, they are very lightweight.
The 2 screws are provided with each bracket. They are stainless steel sheet metal screws with a diameter of 3.5mm and a length of 16mm. Drilling should be done with a drill bit of diameter 2.7.
| Reference White |
Reference Black |
For strap (mm) |
A (mm) Center distance |
| M0693W | M0693N | 25 - 30 | 39 |
| M0694W | M0694N | 40 | 51 |
| M0695W | M0695N | 50 | 59 |
Product Details
M0693W
