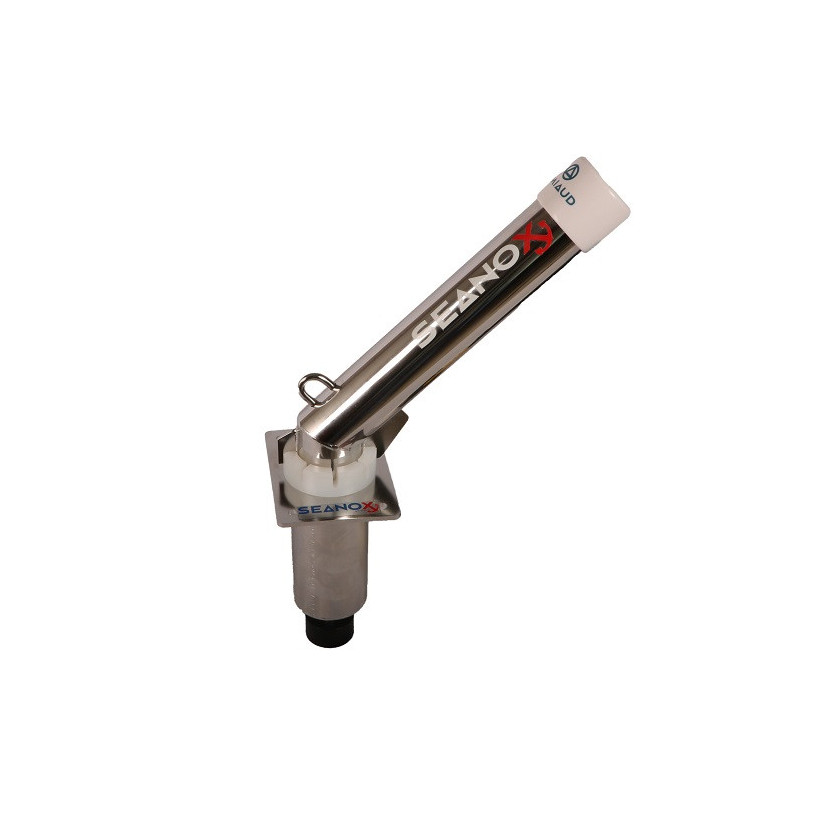

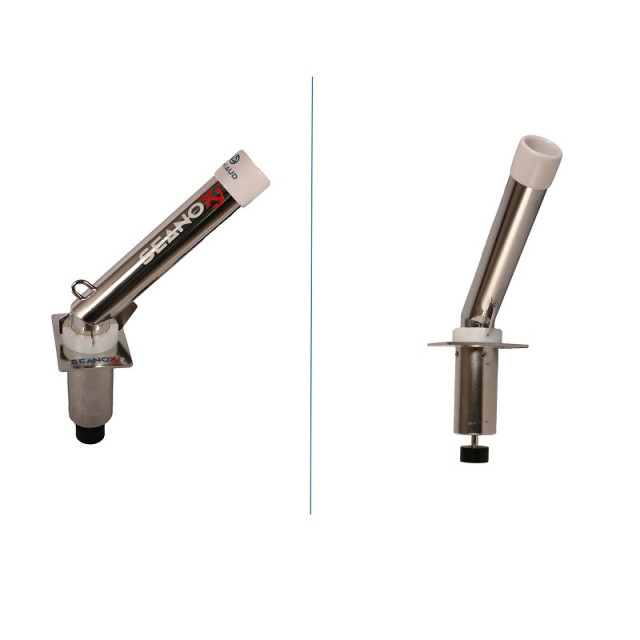

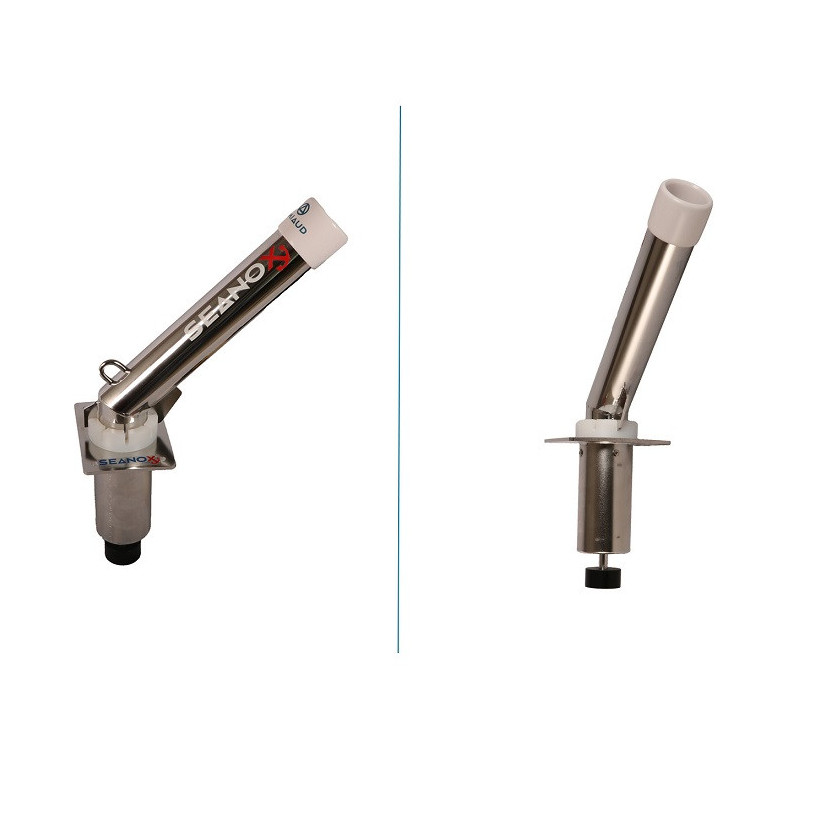

BROUMÉ SEANOX ROD HOLDER

Swiveling rod holder SEANOX, made in France, marine stainless steel



It is the essential product for tuna fishing with chum.



Two possible setups: free or adjustable with notches (5 possible positions).



Free setup:

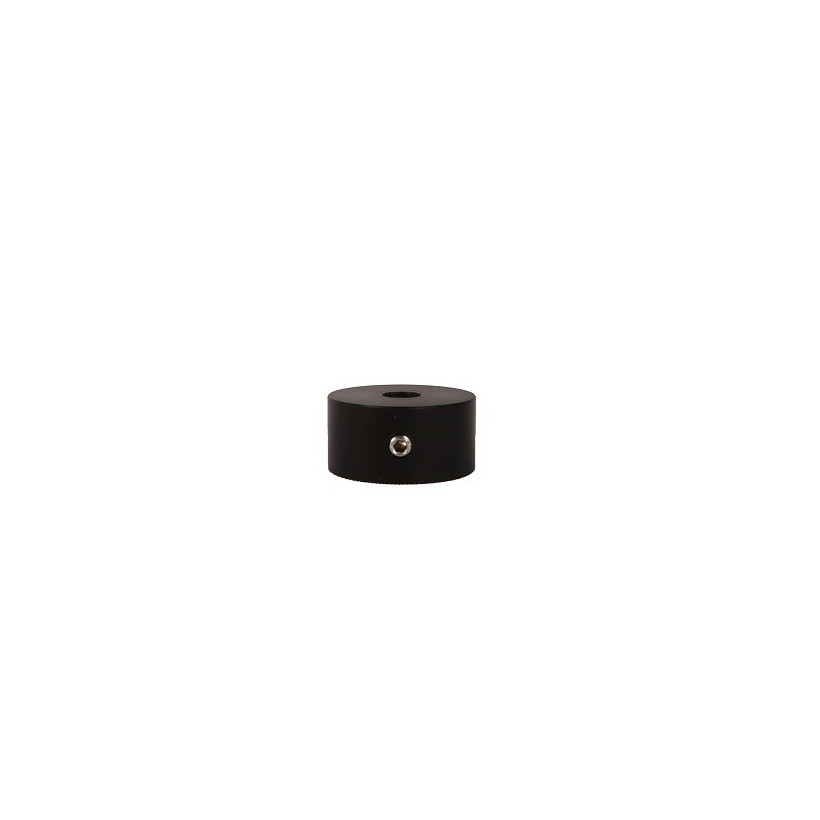

Insert the black stop ring at the bottom of the Ø 10 mm rod extending the rod holder, then tighten the screw on the side of the ring to lock it.

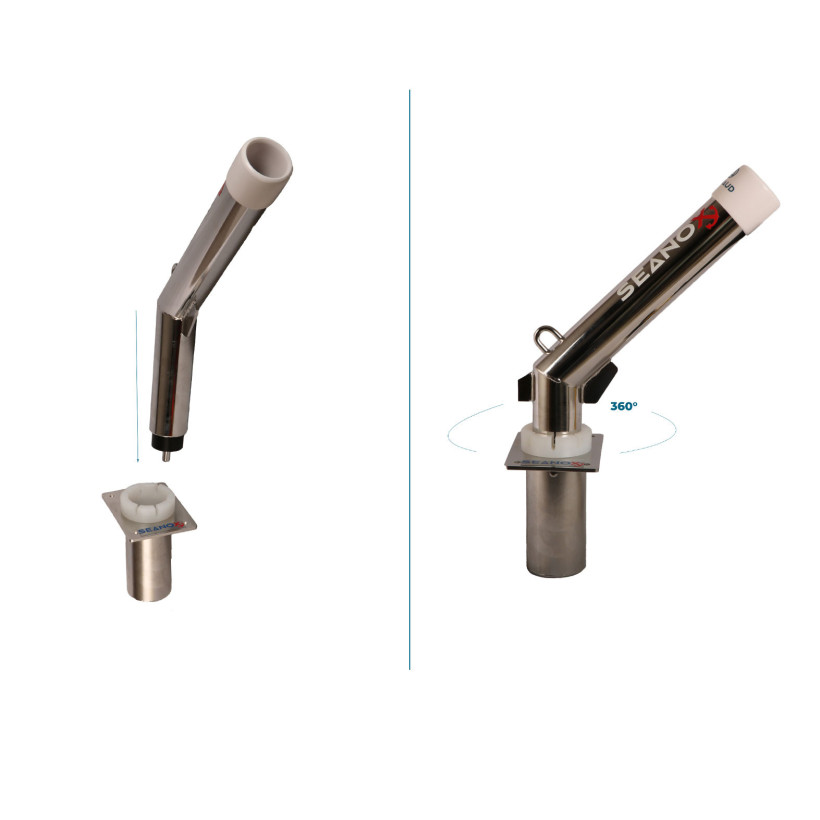

Finally, insert the rod holder into the base, allowing it to rotate freely 360°.


Adjustable notched setup:



To achieve different orientation settings:



Insert the rod holder without the stop ring into the base, so that the locking lugs fit into the orientation grooves of the base.
If you want to leave your rod holder permanently on the base, fix the stop ring at the end of the rod extending the handle, tightening the screw on the side of the stop ring. This will make it adjustable, but it cannot be removed.


If you want to remove your rod holder after your fishing sessions, it will not be necessary to use the stop ring.

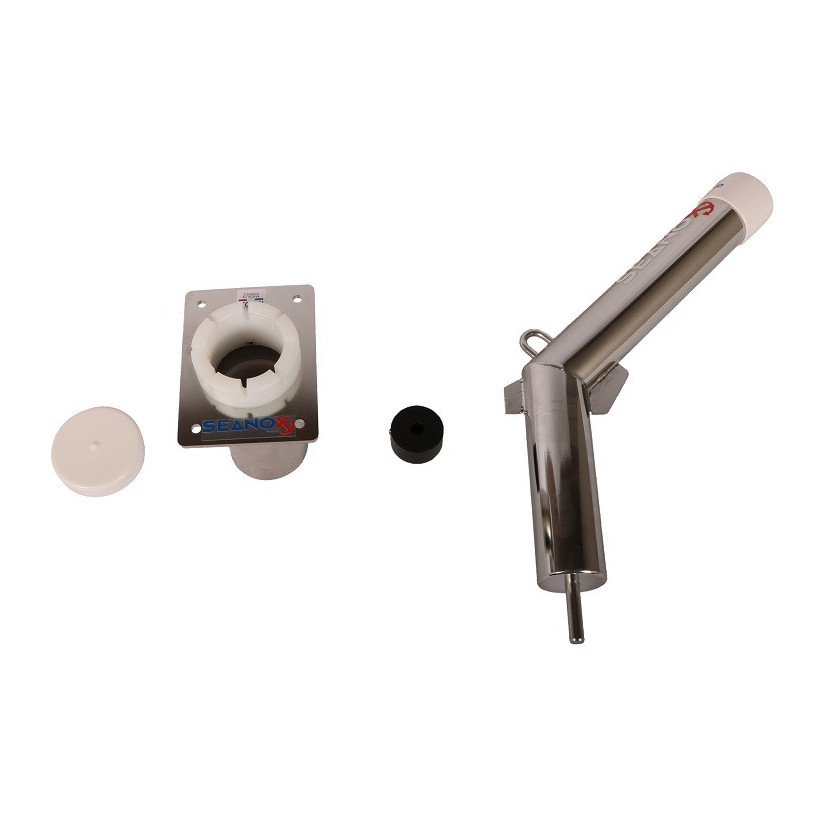

- Base only ref. 478026:

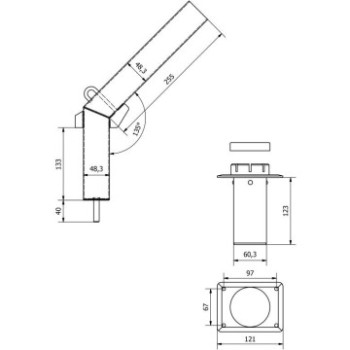

- Flat edge mounting (121 x 90 mm)

- Fixing tube Ø 60.3 x 1.5 mm

- Delivered with waterproof PVC cap (ref. 478070)

- Notched PA6 ring

- Marine Stainless Steel 316L


Handle only ref. 478135:

-

Marine Stainless Steel 316L

- Tube Ø 48.3 x 1.6 mm
-
Inclination 135°
Delivered with stop ring for fixed notch or free functions

- Safety ring
